Garage Door Openers

LiftMaster wall-mount, belt-drive, and chain-drive openers with smart connectivity, battery backup, and options for standard through heavy residential doors.

Request a quote

Upgrade your door with a smart, quiet opener installed by Barton Door technicians. We supply wall-mount, belt-drive, and chain-drive models sized to the complete door system, including current LiftMaster residential jackshaft openers, Security+ 3.0 rail-mounted models, and value-driven Linear options.

LiftMaster wall-mount RJO choices

The LiftMaster 98022 is the standard residential wall-mount opener for compatible torsion-spring sectional doors up to 850 pounds. Although it is sometimes described as the lighter-duty choice when compared with the 98032, LiftMaster’s product guide formally calls its 12V DC motor medium-duty.

The LiftMaster 98032 is the heavy-duty residential wall-mount model, with a published operating range of 400 to 1,100 pounds and a 24V DC platform. It also supports specifically approved high-lift and vertical-lift configurations. It is residential equipment, not a commercial door operator.

Both RJO models mount beside the torsion shaft to free ceiling space. Both include myQ connectivity, battery backup, an automatic lock, remote smart lighting, Timer-to-Close, and safety reversing sensors, and both remove the separate cable tension monitor used on earlier wall-mount generations. Door balance, shaft, drums, tracks, springs, weight, and installation clearances must be verified before either opener is selected.

Compare the LiftMaster 98022 standard wall-mount opener and LiftMaster 98032 heavy-duty wall-mount opener on their individual product pages.

Smart convenience

Built-in Wi-Fi for remote control and status alerts via myQ®
Battery backup options that keep you moving during power outages
LiftMaster 98022 and 98032 wall-mount models plus 6690L, 6580L, and 2420L rail-mounted choices

If you are replacing a residential door or opener in California, review our guide to SB 969 and battery backup requirements before choosing equipment. We can confirm which current opener models fit the door and the project scope.

LiftMaster Security+ 3.0 transition

The 6690L, 6580L, and 2420L use Security+ 3.0 opener controls. Do not assume an existing Security+ 2.0 remote, keypad, wall control, or vehicle button will carry over; Barton will verify each accessory by model or part number. The L993M supplied with the 6690L and 6580L can also control many older LiftMaster openers, while the 2420L’s L993S is Security+ 3.0 only. The 98022 uses Security+ 2.0. LiftMaster’s current 98032 manual supports compatible Security+ 2.0 and Security+ 3.0 accessories.

Security and safety

Secure access with rolling-code remotes and keypad entry
Safety sensors, auto-reverse, and timed close features
Linear 621 for a dependable, budget-friendly opener option

Common accessories we install

Multi-button remotes and visor controls for additional vehicles
Wireless keypads for secure, key-free access
Motion-activated or wall-mounted controls for the garage entry door
Battery backup modules and surge protection
LED light kits, camera modules, and smart control upgrades (model dependent)

Residential myQ benefits

LiftMaster myQ lets you control your door from your phone, check if it’s closed, and receive open/close alerts. It also supports schedules for automatic closing, activity history, and shared access for family members or trusted guests. We can connect myQ during installation and make sure notifications and alerts are set up the way you want.

myQ requires an account and compatible home Wi-Fi. Garage-door schedules are for automatic closing. Live video and basic access or motion alerts do not require a video plan; recorded clips and video history require an optional paid myQ Video Monitoring plan after any trial. During LiftMaster battery-backup operation, the opener can move the door, but opener lighting, app control and monitoring, and Timer-to-Close are unavailable. myQ is not an alarm or security system.

Opener model comparison

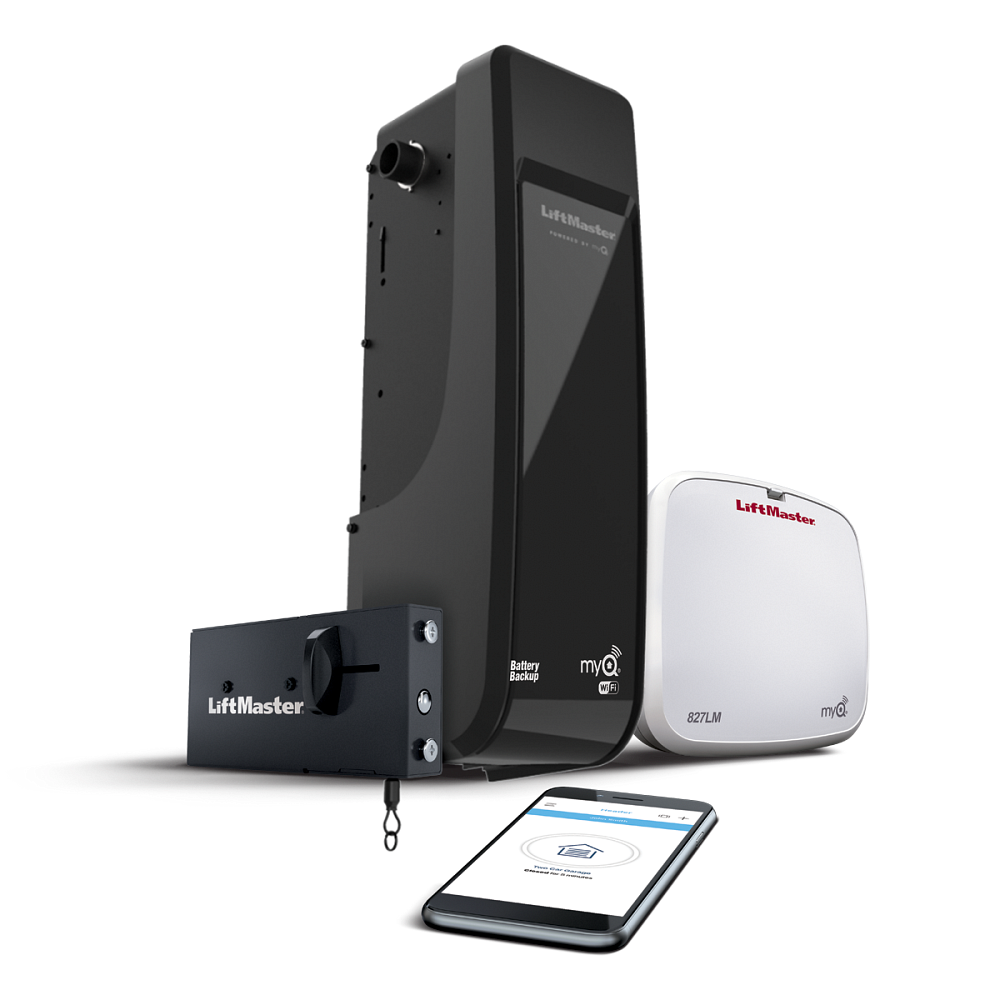

LiftMaster 98022 wall-mount garage door opener

Door range: Compatible torsion-spring sectional doors up to 18 ft wide, 14 ft high, and 850 lb; approved lift and drum configuration required
Smart and safety package: myQ, battery backup, automatic lock, remote smart LED light, Timer-to-Close, and safety sensors; no separate cable tension monitor
Best fit: Standard residential RJO choice when freeing ceiling space and reducing overhead vibration matter

View product page

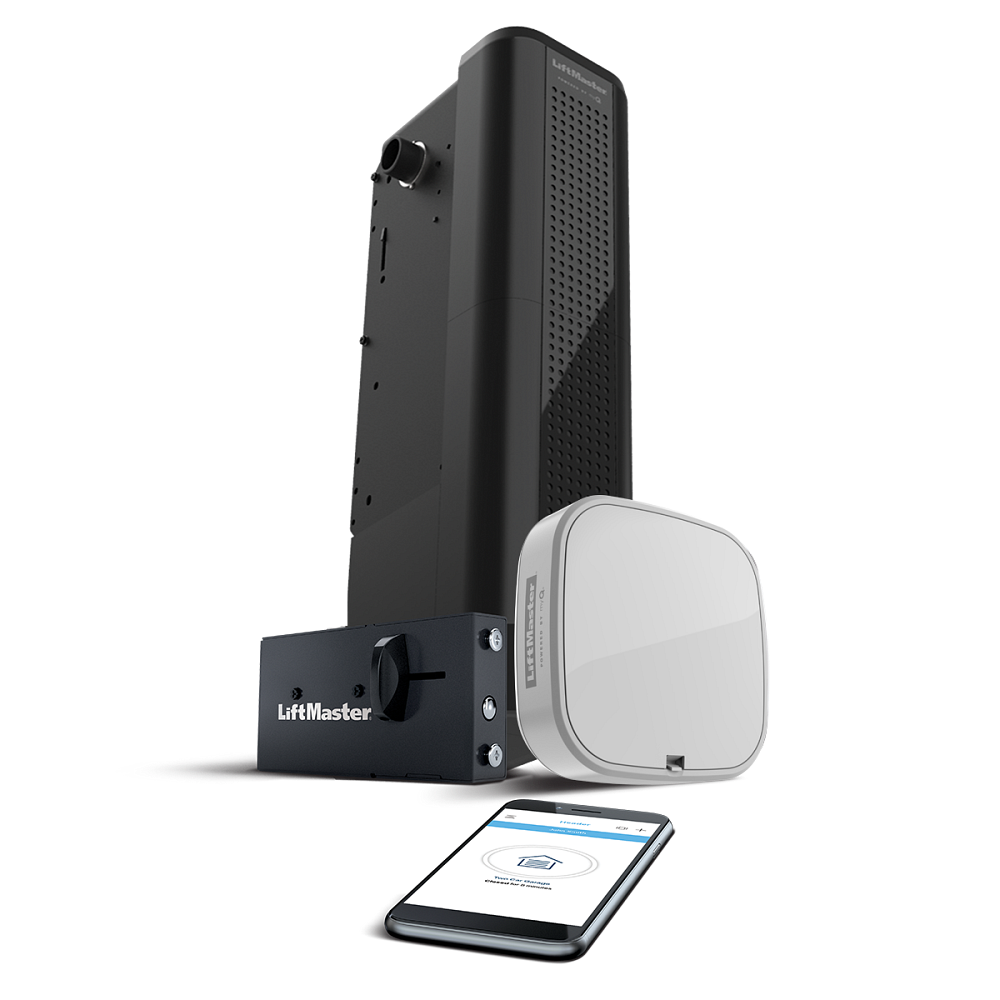

LiftMaster 98032 heavy-duty wall-mount garage door opener

Door range: UL 325 certified for compatible residential doors from 400 to 1,100 lb; standard-lift doors up to 18 ft wide and 14 ft high
Smart and safety package: myQ, battery backup, automatic lock, 1,000-lumen remote LED light, Timer-to-Close, and safety sensors; no separate cable tension monitor
Best fit: Heavy residential doors and approved high- or vertical-lift applications that fit LiftMaster’s drum and door-profile limits

View product page

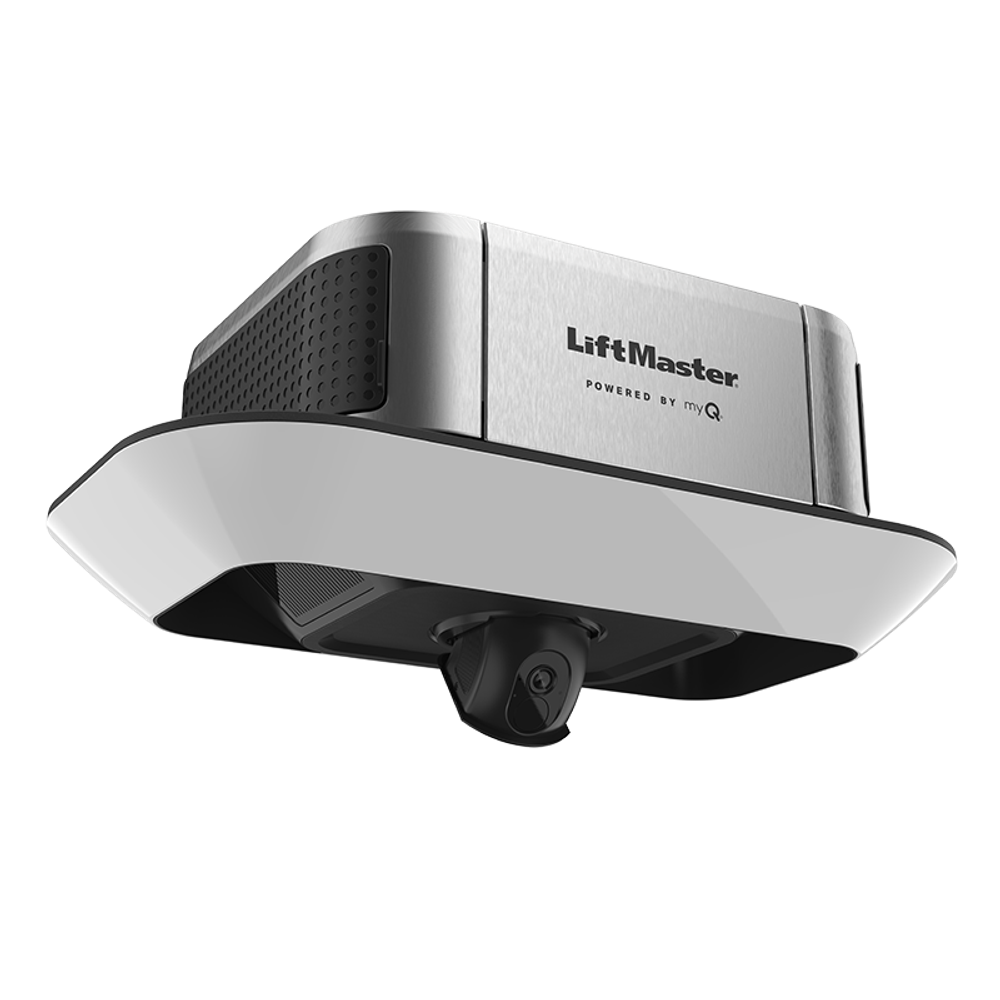

Camera and lighting: 360-degree swivel camera with night vision and a 2,000-lumen LED light ring
Backup and controls: Battery backup; includes 3-button remote, keypad, smart LCD control panel, and battery
Best fit: Premium quiet belt-drive choice for high-use garages, heavier daily use, and homes that benefit from wide lighting and in-garage visibility

View product page

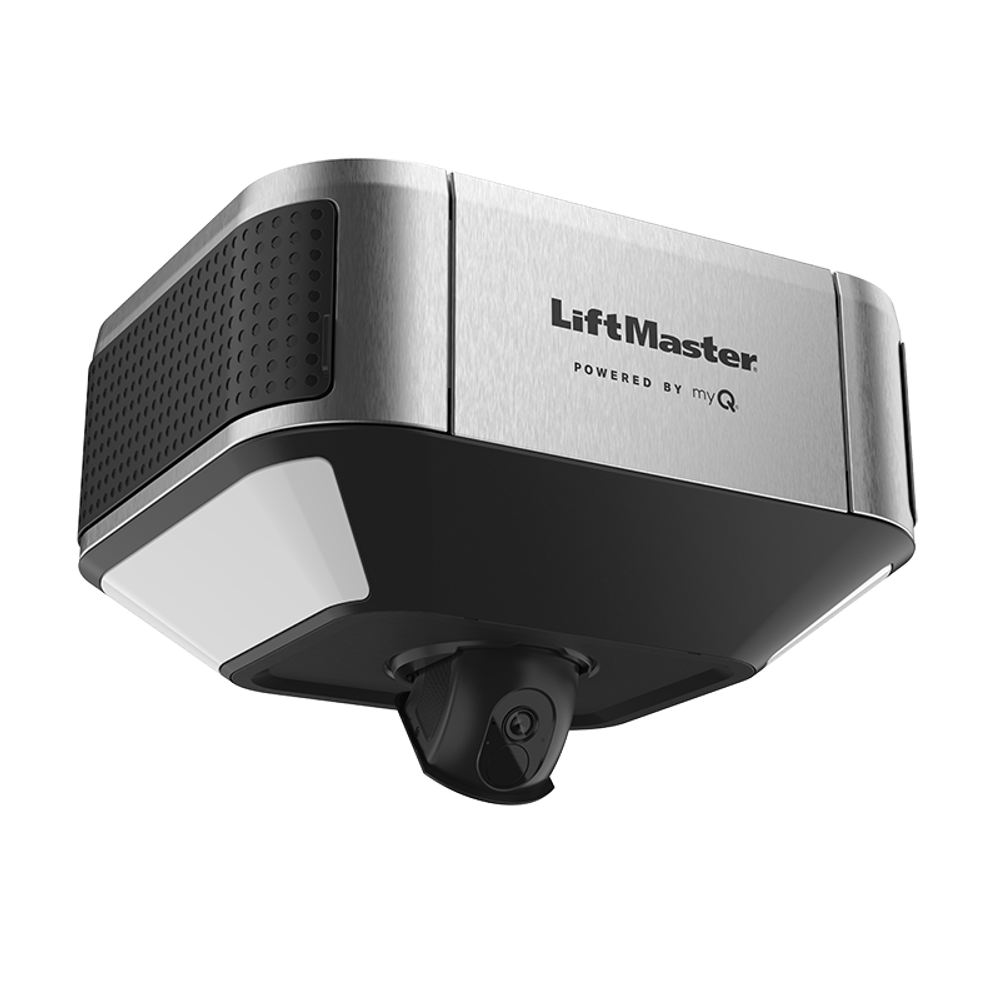

Camera and lighting: 360-degree swivel camera with night vision and 1,500-lumen dual LED lighting
Backup and controls: Battery backup; includes 3-button remote, motion-detecting wall control, and battery
Best fit: Quiet belt-drive choice for higher-cycle residential doors where video, myQ, and battery backup matter but the top 6690L package is not needed

View product page

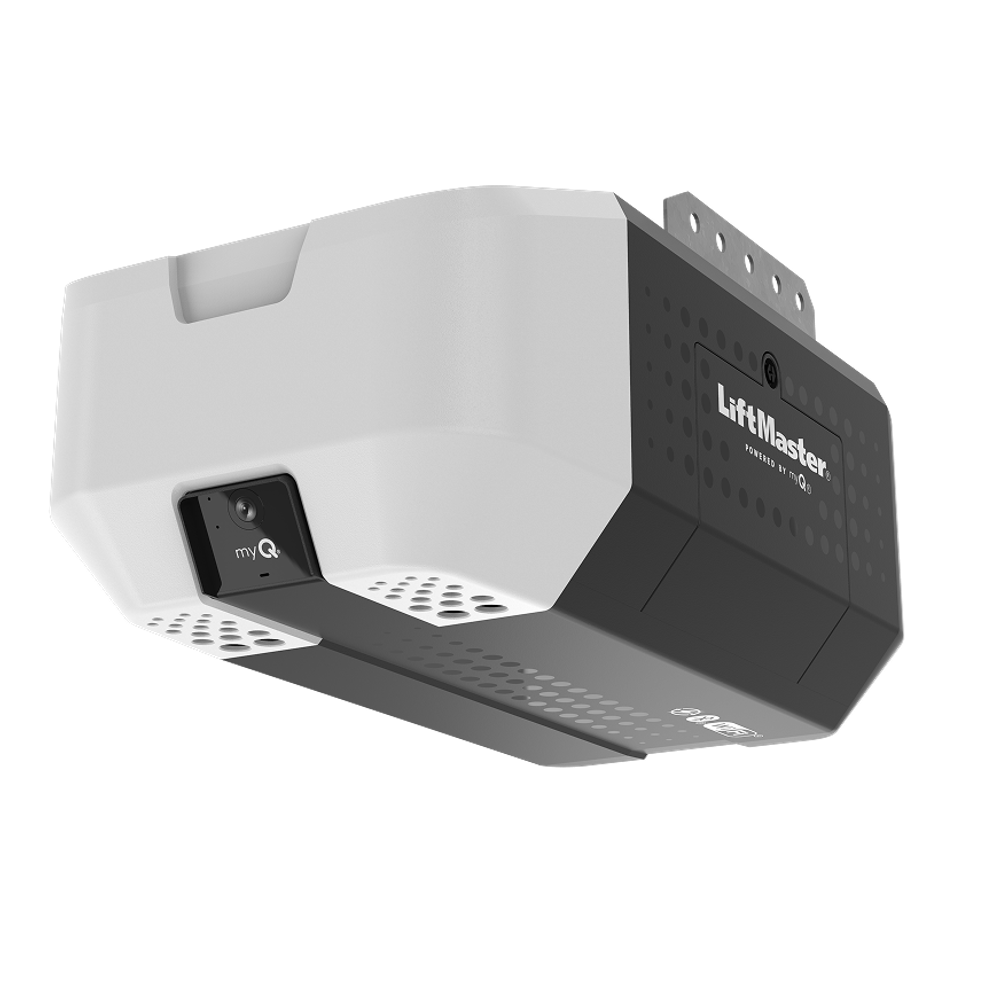

Camera and lighting: Built-in wide-angle camera and one LED bulb, 60-watt max, bulb not included
Backup and controls: Battery backup; includes 3-button remote and multi-function wall control
Best fit: Rugged chain-drive option for frequent residential use when camera, myQ, and backup power are still desired

View product page

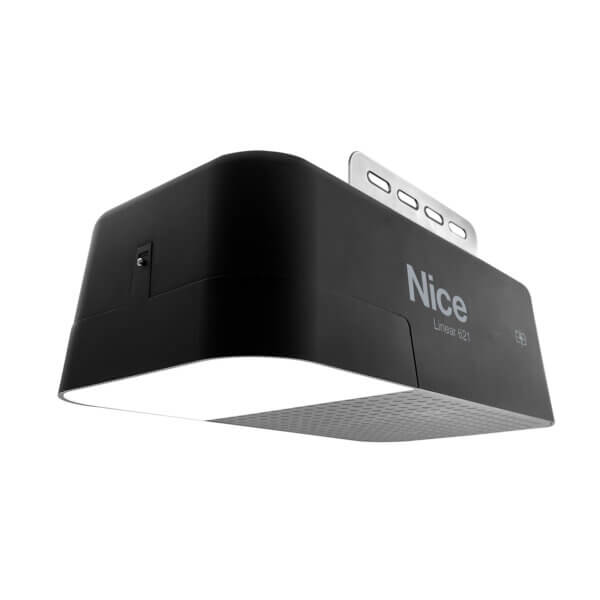

Camera and lighting: Integrated 800-lumen LED lighting
Backup and controls: Preinstalled battery; HomeLink and MegaCode compatible
Best fit: Value-driven residential sectional-door opener for doors up to 8 ft tall and 350 lb, with quiet soft start/stop and simplified installation

View product page

LiftMaster publishes lifetime motor, 5-year parts, and 1-year battery/accessory coverage for the 98022 and 98032; lifetime motor and belt with 5-year parts coverage for the 6690L; 6-year motor and belt with 1-year parts coverage for the 6580L; and a 5-year motor with 1-year parts warranty for the 2420L. Nice lists the Linear 621 warranty as lifetime on motor and drive belt, 5 years on mechanical parts, and 1 year on electrical and battery components. Packaged LiftMaster control and remote model numbers can change, so Barton confirms current carton contents with the quote.

Professional installation

For rail-mounted models, we handle rail sizing, header mounting, and force settings. For wall-mount RJOs, we verify the torsion shaft, drums, door balance, weight, track configuration, side clearance, and power location before setting the correct travel and door profile. After installation, Barton Door can program accessories, connect myQ, test the safety system, and schedule maintenance to keep the opener running smoothly.
