High Speed Doors

Name: High Speed Doors
Brand: Rytec

High-performance doors with rapid opening speeds for climate-controlled and high-traffic facilities.

High speed doors open quickly, cycle reliably, and are engineered for demanding environments such as cold storage, exterior openings, parking areas, and busy warehouse aisles. Rytec models add tighter sealing, smarter controls, and durable curtains so facilities can maintain temperature and flow without sacrificing safety.

Featured Rytec model comparison

Opening speed: Up to 60 inches per second
Typical application: Secure, high-traffic automotive, parking, government, manufacturing, and other security-sensitive openings
Safety and controls: Variable-speed AC drive with soft acceleration; SmartSurround Advanced light curtains available
Warranty notes: 5-year limited warranty on motor, mechanical components, and materials; 2-year limited warranty on electrical components

Opening speed: Up to 50 inches per second
Typical application: Exterior fabric doors, parking, and heavy-duty interior openings where wind, pressure, and uptime matter
Safety and controls: System II counterbalance/tensioning, Break-Away bottom bar, Pathwatch, dual thru-beam photo eyes, reversing edge, and Ry-Wi wireless safety
Warranty notes: 5-year limited warranty on motor and 3-ply Rylon panel material; 2-year limited warranty on mechanical/electrical components

Opening speed: Up to 50 inches per second
Typical application: Interior or exterior manufacturing, warehousing, parking, coolers, and cold-storage openings
Safety and controls: Variable-speed AC drive, Pathwatch Safety Light System, dual thru-beam photo eyes, reversing edge, and Ry-Wi wireless safety
Warranty notes: 5-year limited warranty on motor/mechanical components and Rylon panel material; 2-year limited warranty on electrical components

Opening speed: Up to 48 inches per second
Typical application: Large exterior or interior openings for manufacturing, warehousing, distribution, transit, parking, automotive, government, and heavy-equipment facilities
Safety and controls: Breakaway bottom bar, Pathwatch option, dual thru-beam photo eyes, electric reversing edge, wireless safety system, and chain hoist
Warranty notes: Limited lifetime warranty on SBR rubber panel material; 2-year limited warranty on motor, mechanical, and electrical components

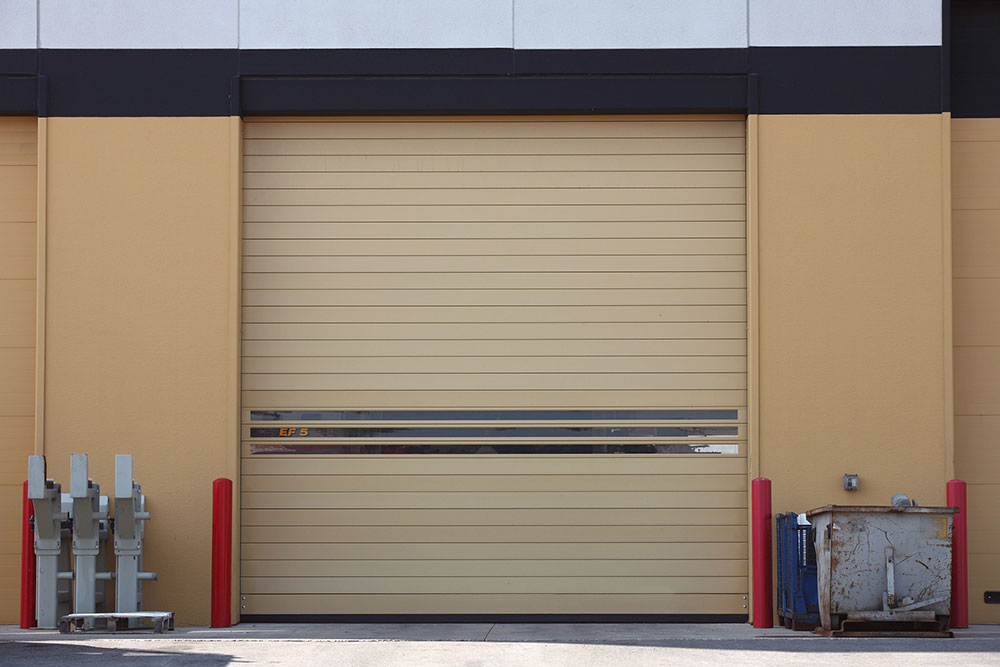

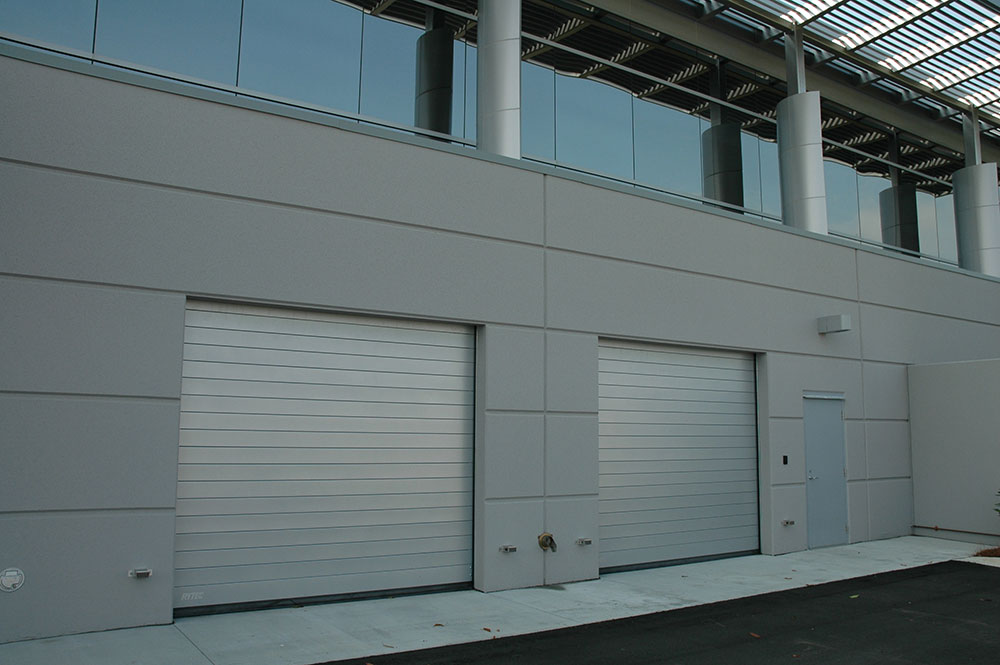

Rytec Spiral rigid rolling doors

Rytec positions the Spiral as a rigid, high-speed coiling door built for security and long service life. The Spiral design avoids metal-on-metal contact for quieter operation, uses a counterbalanced system with AC drive to reduce wear, and pairs double-wall aluminum slats with rubber seals for a tight, secure closure.

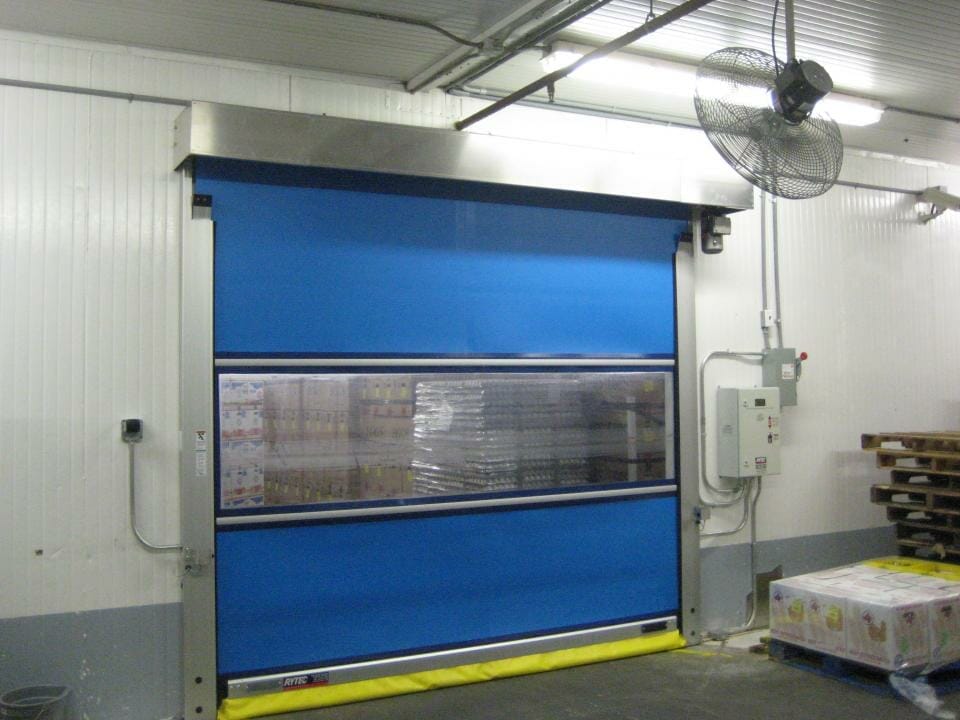

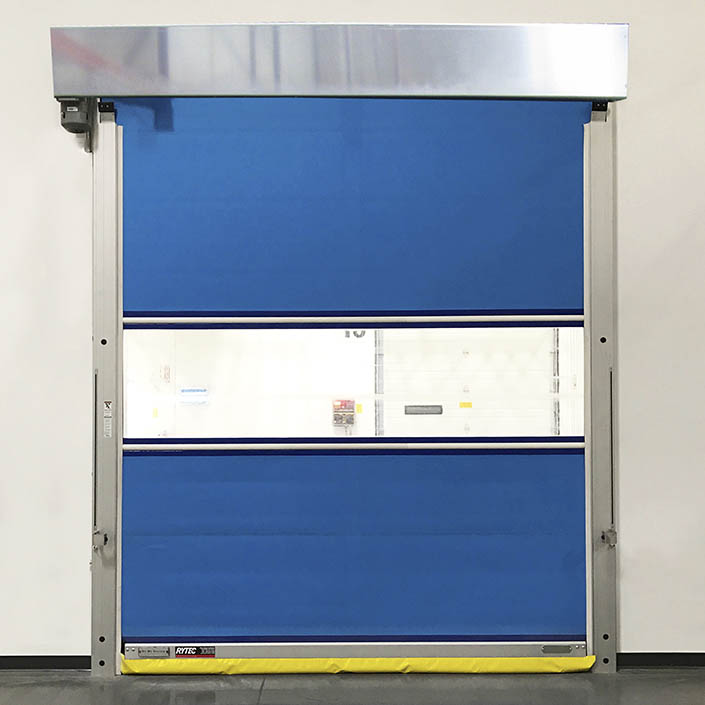

Rytec PredaDoor NXT high-speed fabric doors

PredaDoor NXT doors emphasize fast cycles and low maintenance. Rytec notes the door limits conventional wear parts, resets quickly without tools after an impact, and uses a variable AC drive with intelligent controls to smooth motion and manage power use.

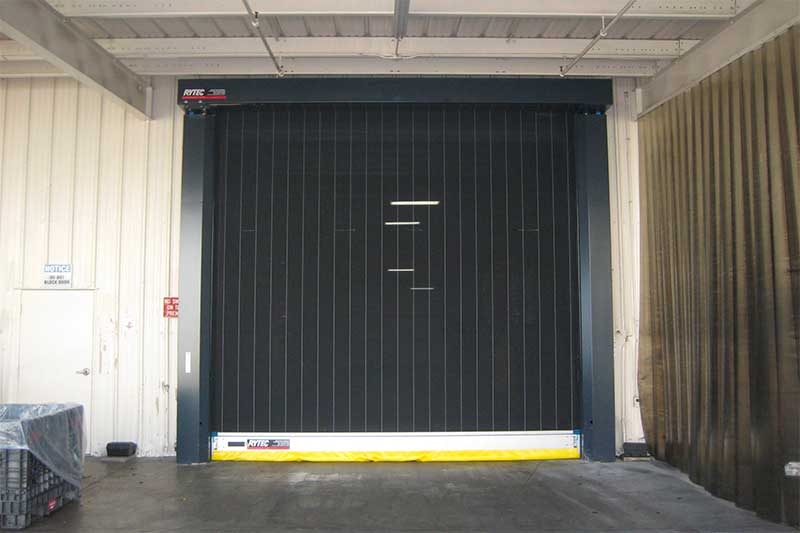

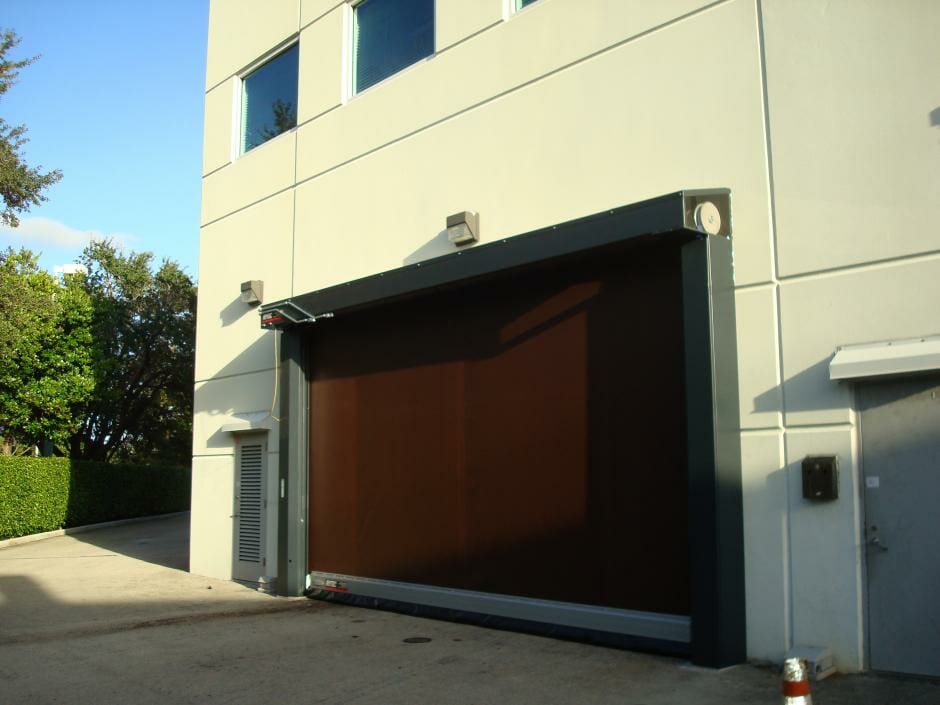

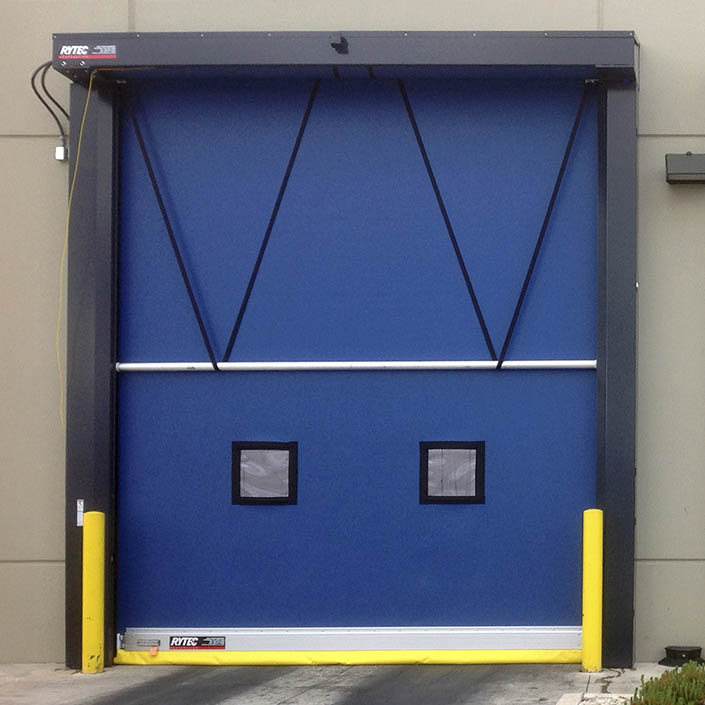

Rytec Fast-Seal high-speed fabric doors

Rytec’s Fast-Seal line is engineered for exterior openings where wind and pressure are a concern. The System II counterbalance/tensioning system helps it stay stable, the breakaway bottom bar is designed to reset in seconds without tools, and the head assembly is reinforced for durability. Rytec backs Fast-Seal with a 5-year limited warranty on the motor and 3-ply Rylon panel material, plus a 2-year limited warranty on mechanical and electrical components.

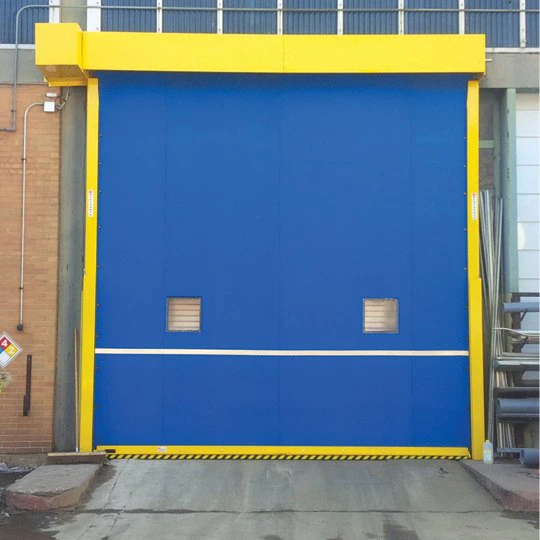

Rytec PowerTec SR rubber doors

For large openings that need rugged performance, Rytec’s PowerTec SR uses a springless design with fewer moving parts and a reinforced rubber curtain. The door is built for reliable high-speed cycles, with a variable AC drive and intelligent controller to reduce wear and smooth operation. Rytec lists a limited lifetime rubber panel warranty and a 2-year limited motor, mechanical, and electrical warranty for PowerTec SR.
