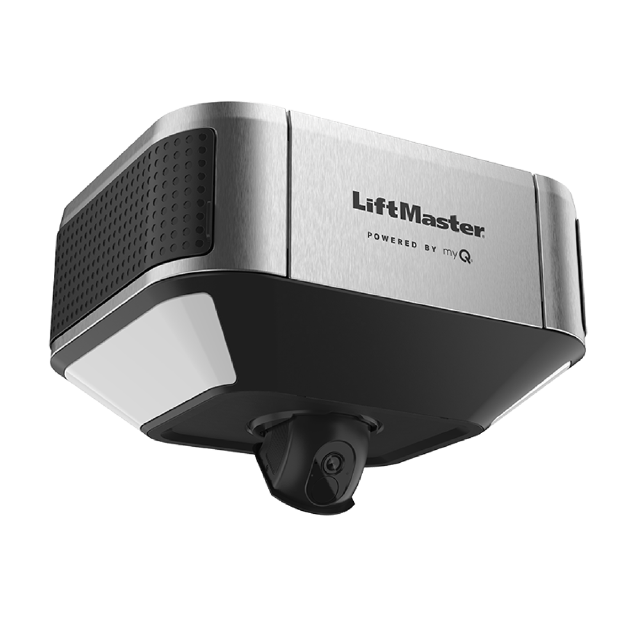

The LiftMaster 6580L is a Plus Series 1 HPs belt-drive opener with battery backup, myQ smart access, integrated camera, and dual LED lighting. It is a strong fit for attached garages and higher-cycle homes where quiet operation, dependable access, and smooth DC motor performance matter.

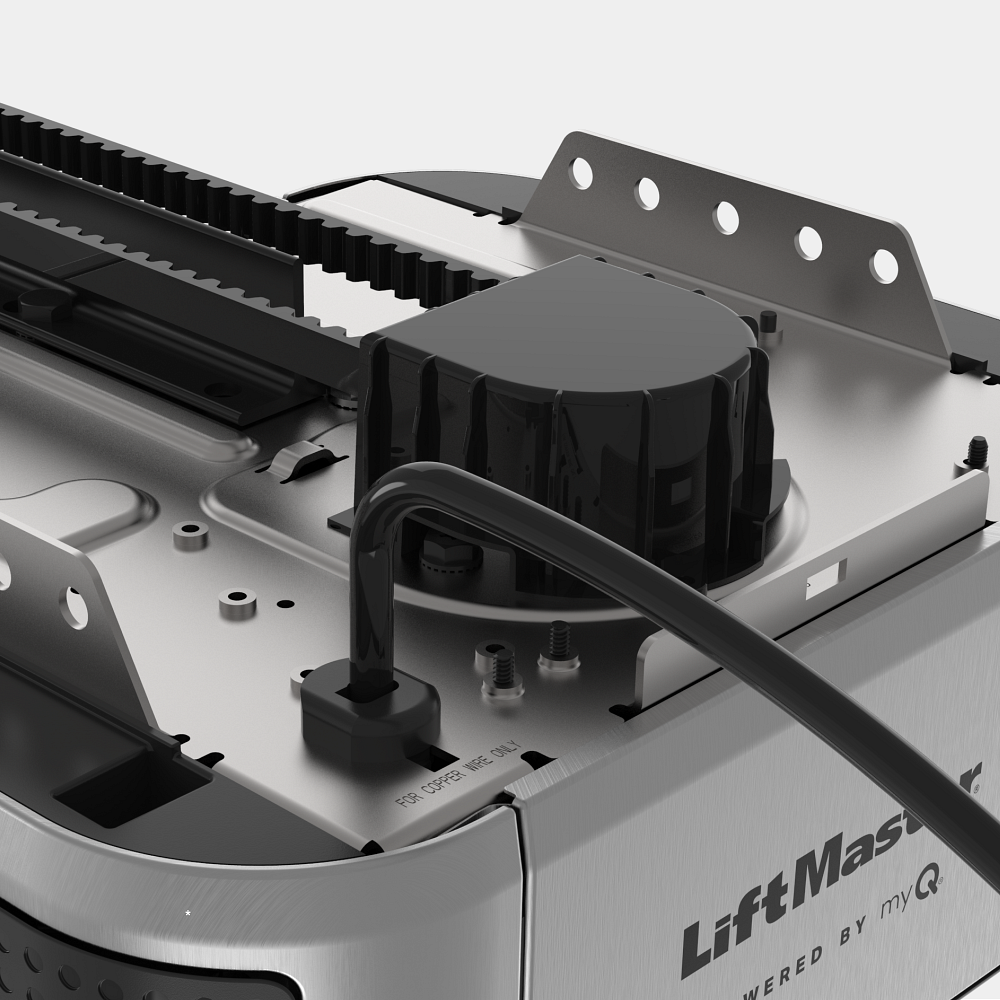

Smooth belt-drive operation
- Belt-drive system for quieter starts and stops
- Battery backup for access during power outages
- LiftMaster 1 HPs DC motor positioning for higher-cycle homes
- Lift capacity similar to a 1 HP AC motor; DC motor lift capacity is not measured in HP
- 12V DC motor with soft start/stop operation
Connected convenience
- myQ smart connectivity for remote control and alerts

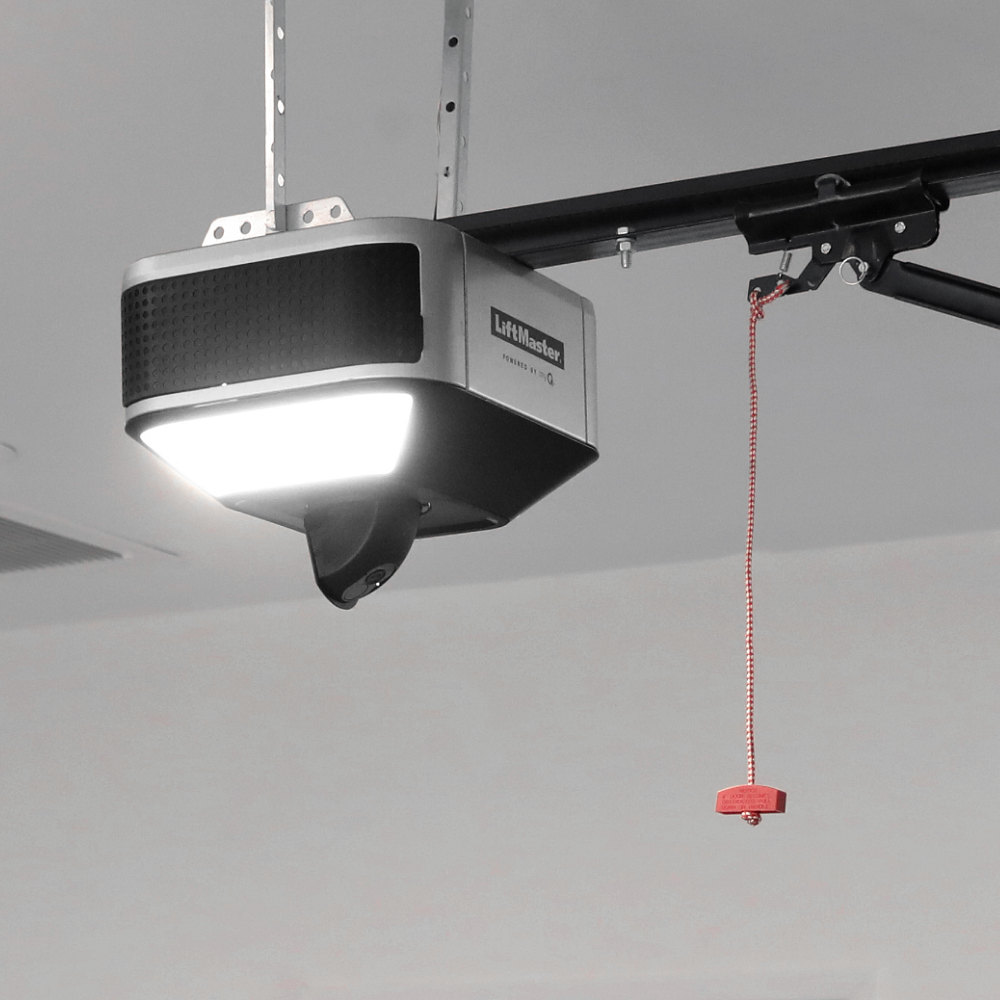

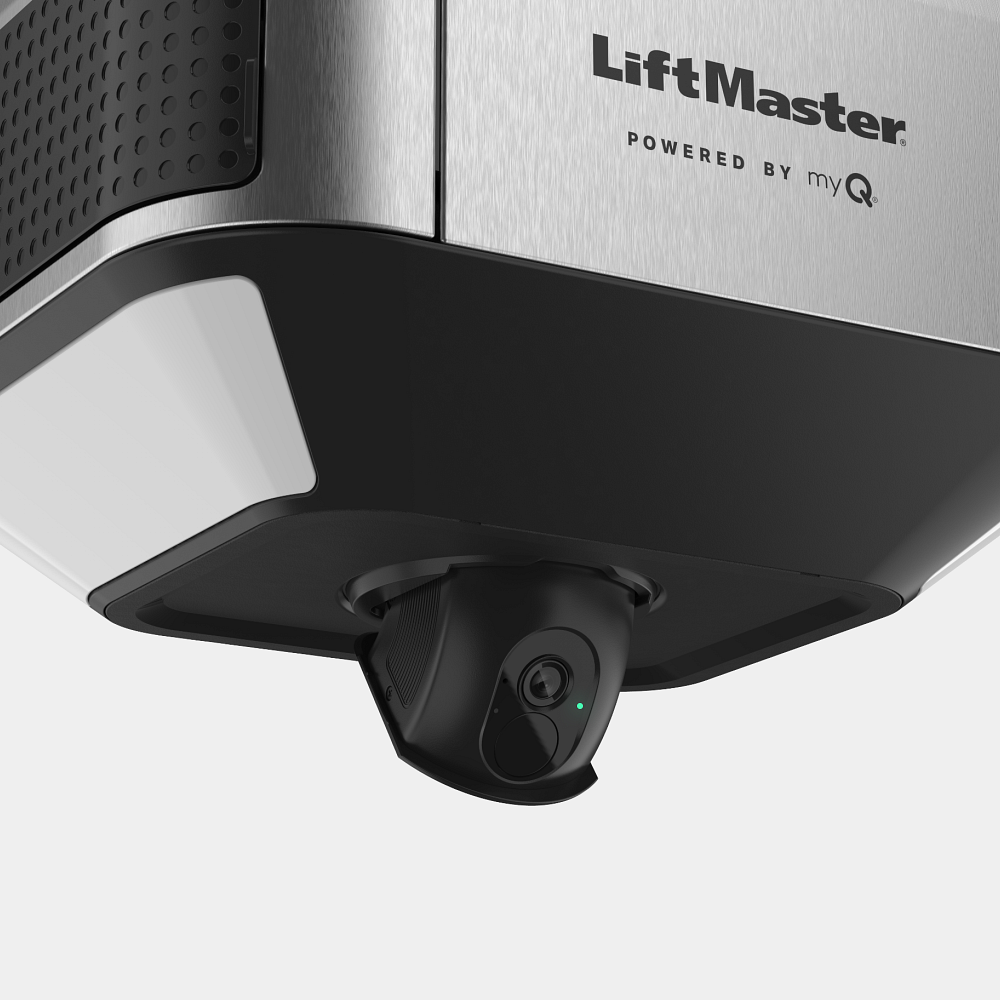

- Integrated 360-degree swivel camera with wide-angle viewing and night vision
- Dual LED lighting system rated at 1,500 lumens
- Security+ 3.0 compatibility for current LiftMaster controls and accessories
- Works with wireless keypads and multi-button remotes
- Rolling-code technology to help prevent unauthorized access
Fit and accessories
- 7-foot, 8-foot, and 10-foot rail options
- 2-inch headroom clearance required
- Includes L993M 3-button remote, L957W motion-detecting control panel, 485LM battery, and Protector System safety reversing sensors
- Opener head dimensions: 10.5 inches long by 21.7 inches wide by 8.2 inches high
Warranty
- 6-year motor and belt warranty
- 1-year parts and LED warranty
- 1-year battery, camera, and accessories warranty
Installed by Barton Door
We match the opener to door weight, set limits, and verify safety sensors. After install, we can program accessories and schedule maintenance to keep everything running cleanly.
Next step
Plan service and installation
Review related service pages and connect with a nearby showroom to finalize scope, measurements, and scheduling.
