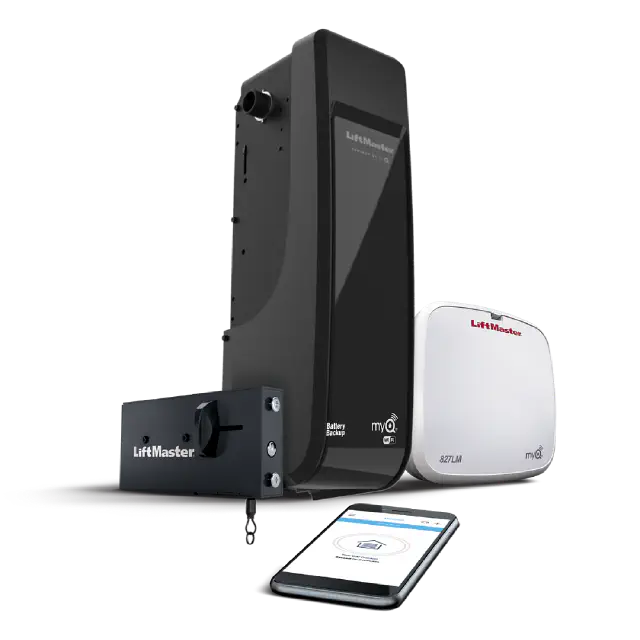

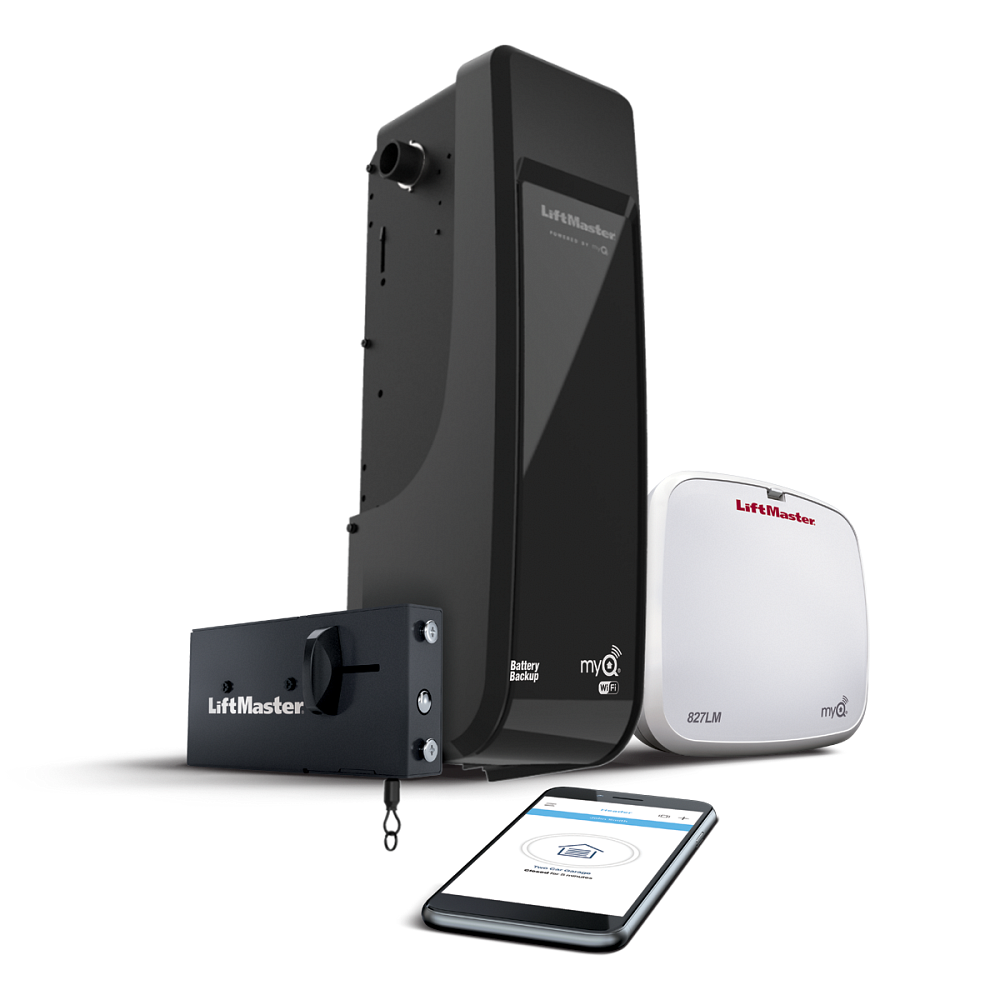

LiftMaster 98022 Wall-Mount Garage Door Opener

The LiftMaster 98022 is the current standard residential wall-mount opener, also called a residential jackshaft opener or RJO. It mounts beside the torsion shaft instead of using a ceiling rail, leaving overhead space open for storage, lighting, or a car lift.

If you are comparing a “light-duty” RJO with a heavy-duty model, the 98022 is the standard choice for doors up to 850 pounds. LiftMaster’s formal product name does not call it light-duty; its product guide describes the 12V DC motor as medium-duty.

Door fit and operating range

• Residential sectional doors with a 1-inch torsion shaft and compatible drum arrangement
• Maximum published door size of 18 feet wide by 14 feet high and up to 850 pounds
• Standard-lift, approved high-lift, and vertical-lift configurations after drum, shaft, and track review
• Not intended for extension-spring doors, reverse-wound drums, or low-headroom track with an outside pickup drum
• Requires appropriate wall, ceiling, side, shaft, and outlet clearance at the torsion assembly

The door must be properly balanced before installation. Door weight alone does not establish compatibility; shaft movement, drum geometry, track configuration, available side room, and spring condition all matter.

Quiet wall-mount performance

• Medium-duty 12V DC motor with soft start and stop
• Published opening speed of 8.5 inches per second and closing speed of 7.6 inches per second
• Internal chain-and-sprocket reduction with automatic force adjustment
• No separate cable tension monitor in the current 98022 design
• Wall mounting reduces the noise and vibration transmitted through the ceiling by a conventional rail-mounted opener

Smart access, lighting, and backup

• Built-in Wi-Fi and Bluetooth setup for myQ monitoring, control, alerts, schedules, and shared access
• Battery backup for operation during a power outage
• Automatic garage door lock that secures the closed door
• Remote smart LED light that can be positioned on the wall or ceiling
• Timer-to-Close, motion-activated lighting, and required safety reversing sensors

LiftMaster’s current catalog is transitioning some packaged remotes and accessories, so exact accessory model numbers can vary. Barton Door will confirm the control, remote, light, battery, and lock package included with the quoted opener.

Warranty

LiftMaster publishes a lifetime motor warranty, 5-year parts warranty, and 1-year battery and accessory warranty for the 98022. Warranty coverage depends on residential use and installation, operation, maintenance, and testing that follow LiftMaster’s requirements.

When to step up to the 98032

Choose the LiftMaster 98032 heavy-duty wall-mount opener when a compatible residential door falls within its 400-to-1,100-pound operating range or needs its 24V heavy-duty platform. The 98032 is not a substitute for a commercial door operator.

Installed by Barton Door

We verify door balance, weight, track and drum configuration, torsion-shaft condition, required clearances, power, and Wi-Fi coverage before recommending an RJO. Installation includes travel and force setup, safety-reversal testing, lock alignment, remote programming, and myQ connection support.

See LiftMaster’s current 98022 product and support page for manufacturer information.
