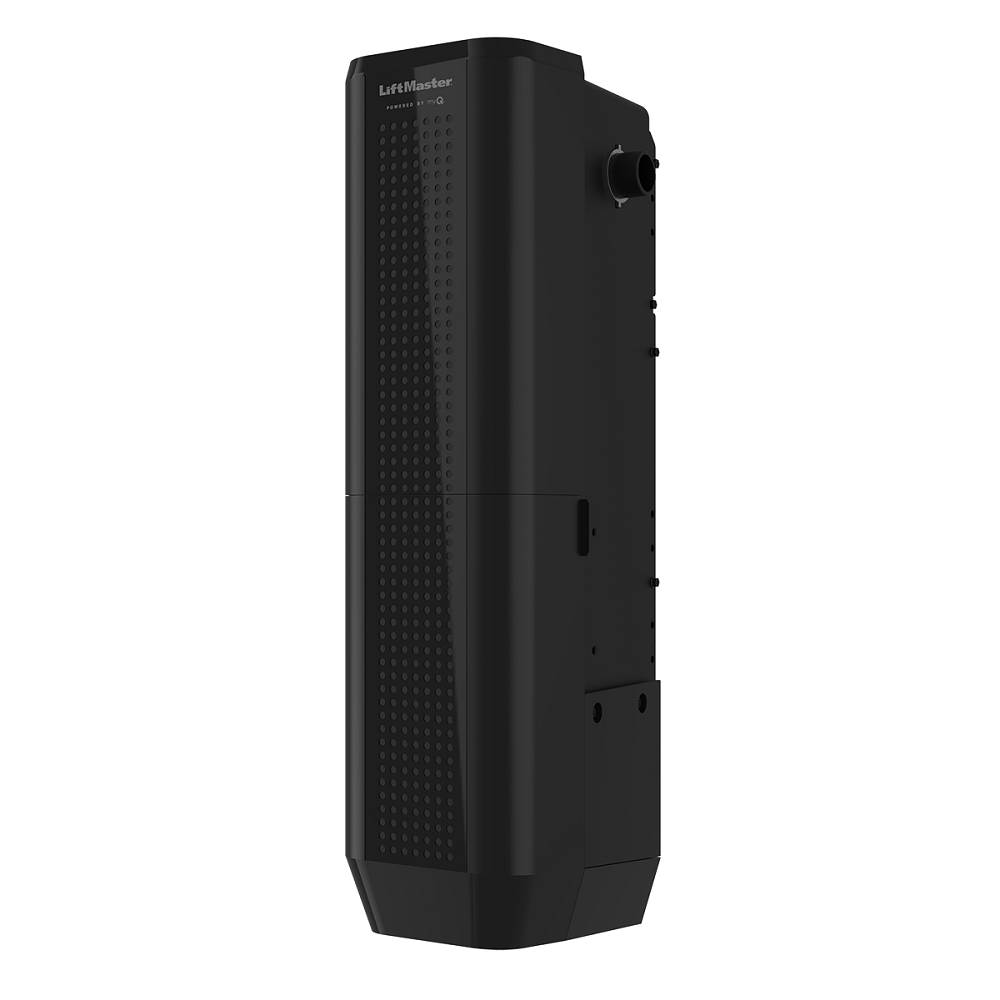

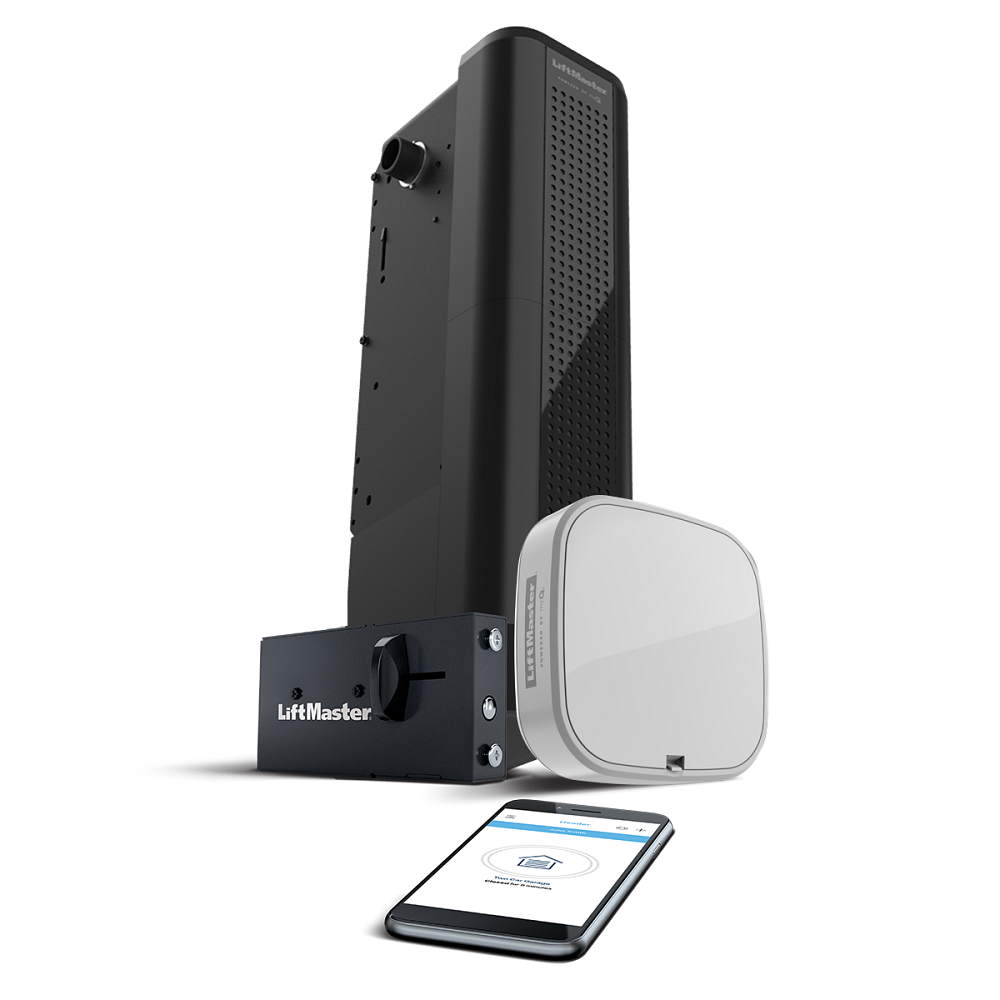

LiftMaster 98032 Heavy-Duty Wall-Mount Opener

The LiftMaster 98032 is the current heavy-duty residential wall-mount garage door opener. Its 24V DC jackshaft platform is UL 325 certified to lift compatible residential sectional doors from 400 to 1,100 pounds while freeing the ceiling from a conventional opener rail.

This is a residential opener, not a commercial door operator. Facilities and commercial doors need a separately rated LiftMaster commercial operator selected for the door, duty cycle, controls, and entrapment-protection requirements.

Heavy-door fit and operating range

• Published operating range of 400 to 1,100 pounds; it is not intended for doors below 400 pounds
• Standard-lift sectional doors up to 18 feet wide and 14 feet high
• Standard-lift profiles for 4-to-6-inch drums, with the allowed weight range determined by the exact drum profile
• Approved high-lift configurations with up to 84 inches of high lift and approved vertical-lift configurations
• High-lift and vertical-lift profiles using an 8-inch tapered drum are limited to 400 to 700 pounds
• Residential sectional doors with a 1-inch torsion shaft; not for extension springs, reverse-wound drums, or low-headroom track with an outside pickup drum

The door’s measured weight, balance, shaft movement, drum load rating, track geometry, spring condition, and installation clearances must all be checked before the 98032 is specified.

Heavy-duty wall-mount performance

• 24V DC motor supplied from a 120V AC, 60 Hz circuit
• Fast, smooth wall-mount operation without a ceiling rail
• Soft start and stop to reduce abrupt movement and hardware stress
• No separate cable tension monitor in the current design
• Door-profile programming that matches the operator to the approved drum, lift type, and weight range

Smart access, lighting, and backup

• Built-in myQ connectivity for remote status, control, alerts, schedules, and shared access
• Battery backup system for access during a power outage
• Automatic garage door lock for the closed door
• 1,000-lumen remote smart LED light for flexible wall or ceiling placement
• Timer-to-Close and required safety reversing sensors

LiftMaster’s live catalog and current manual show transition-era differences in packaged remote part numbers. Barton Door will confirm the exact control, remote, light, battery, and lock package included with the quoted opener.

Warranty

LiftMaster publishes a lifetime motor warranty, 5-year parts warranty, and 1-year battery and accessory warranty for the 98032. The warranty is for qualifying residential use and depends on installation, operation, maintenance, and testing that follow LiftMaster’s requirements.

Compare the standard RJO

For a compatible residential door up to 850 pounds, compare the LiftMaster 98022 standard wall-mount opener. It uses a 12V DC platform and covers a wider range of ordinary residential RJO applications without the 98032’s 400-pound minimum.

Installed by Barton Door

We verify the complete door system before recommending this opener. Installation includes door-profile selection, travel and force setup, safety-reversal testing, lock alignment, remote programming, and myQ connection support.

See LiftMaster’s current 98032 product and support page for manufacturer information.
