Loading Dock Traffic Control and Lighting

Enhance dock safety with communication lights, guards, and airflow solutions from Blue Giant. We combine accessories to upgrade existing docks or outfit new construction, including LED signal systems, dock lights, track guards, and wheel chock packages.

Communication and protection

• LED traffic lights and reflective guides that coordinate drivers and dock crews

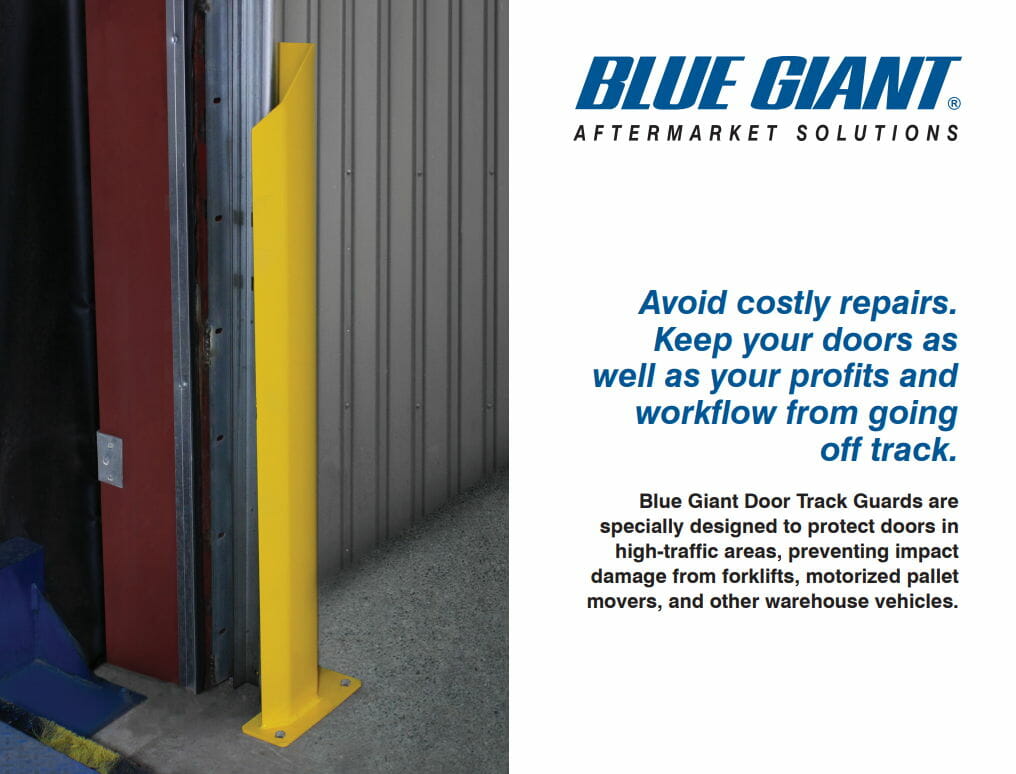

• Wheel chocks, track guards, and folding security gates to keep equipment safe
• Weather seals and bumpers to reduce damage around the opening

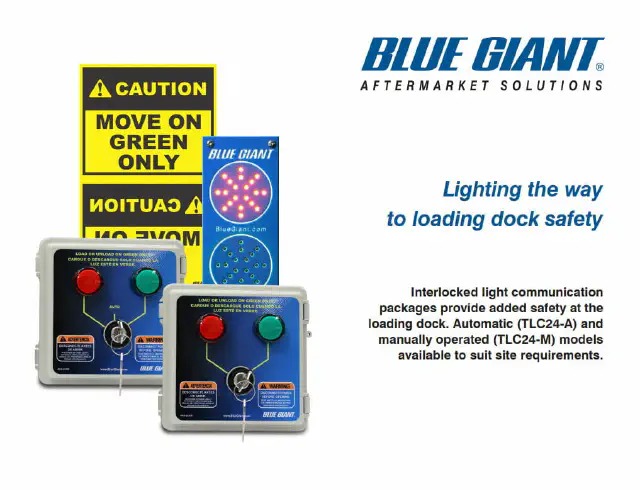

Stop and Go Traffic Light

• Blue Giant part 032-806 exterior LED traffic light for positive stop/go driver communication
• 12-24 VAC/DC operation at 0.075 amps, with other voltages available
• Maintenance-free red and green LED lights in a polypropylene housing that will not rust, pit, or corrode
• Shallow body depth with integral lens visors for extended visibility and reduced glare
• Optional yellow housing available as part 032-807
• 2-year limited warranty on LED lights

Better lighting and comfort

• Loading dock lights with 40-inch reach arms for focused trailer illumination
• HD Series LED dock lights: standard DL40-HDLED 40-inch double-strut reach, with optional DL24-HDLED 24-inch and DL60-HDLED 60-inch double-strut arms
• HD Series heads rated NEMA4/IP66 for demanding dock environments, with an 18-watt cool white LED that exceeds a 300-watt incandescent bulb
• Constant-current IP66 LED driver rated for 100,000 hours of operation at 77 degrees F
• Dock Light Fan options with a heavy-duty 18-inch, 3-speed fan that moves over 3,000 CFM and is available with 24-, 40-, and 60-inch arms
• Air curtains to improve comfort and help manage dust and fumes
• Upgrade options to convert mechanical docks to powered operation

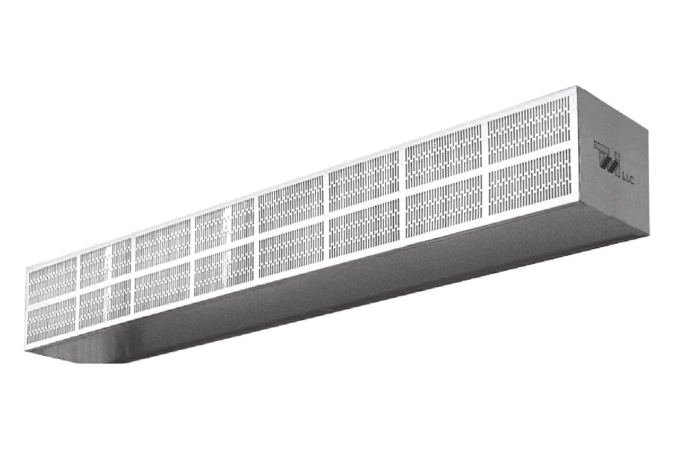

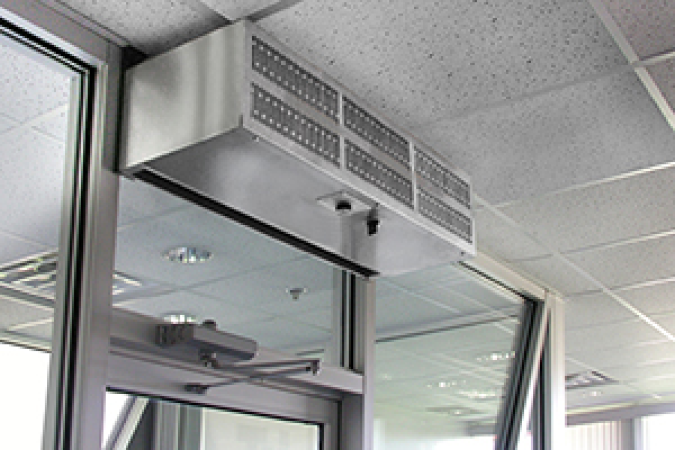

Air curtains

• Recommended for manufacturing facilities, cold storage and food processing, general warehousing, loading docks, shipping and receiving doors, internal warehouse openings, and walk-in coolers or freezers
• Create a concentrated air stream across the doorway so people and equipment can pass while outside air infiltration is reduced
• Help keep out cold wind, hot breezes, pests, and airborne pollutants without blocking visibility at active openings
• Recirculate stratified heat inside the building to reduce heating costs in cold weather
• Available in multiple mounting configurations, including wall, ceiling, extension-bar, tandem, and vertical mounting for low-clearance openings

Integrated packages

Our team designs accessory packages that pair with levelers, restraints, and doors so every bay meets your safety and productivity goals.
